2013 Reevaluation of the
Beaumont Basin Watermaster 3-Apr-15 Beaumont Basin Safe Yield

§ ¨ ¦ Map Features
10
Horizontal and Vertical Hydraulic
Conductivity (ft/day)
25, 0.25 2, 0.02

4, 0.07
5, 0.1
7, 0.07

10, 0.1
25, 0.25 15, 0.15
15, 0.15
60, 0.5 20, 0.2 20, 0.2
7, 0.07 20, 0.15

25, 0.25 2, 0.02 25, 0.25
30, 0.3
35, 0.35

U V 4, 0.07 20, 0.15 50, 0.5 50, 0.5
60
60, 0.5
10, 0.1
10, 0.1 Surficial or Alluvial Deposists
35, 0.35 Pleistocene San Timoteo Deposits
Tertiary San Timoteo and other
Tertiary Sedimentary Deposits
5, 0.1 § ¨ ¦
10
30, 0.3 Crystalline Basement Complex
Inactive Model Zone

Beaumont Basin Adjudicated Area
Ü Freeway/Highway

0 0.5 1 2
Miles

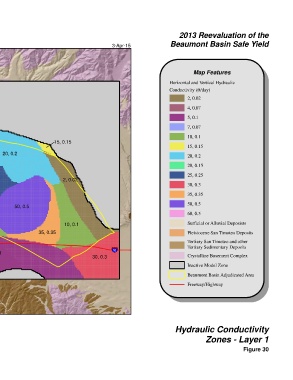

NAD 83 State Plane Zone 6 Hydraulic Conductivity
Zones - Layer 1

Figure 30
