2013 Reevaluation of the
Beaumont Basin Watermaster 3-Apr-15 Beaumont Basin Safe Yield
§ ¨ ¦
10
Map Features
Horizontal and Vertical Hydraulic
12, 0.12 Conductivity (ft/day)
0.5, 0.01
2, 0.02
5, 0.05
12, 0.12 0.5, 0.01 12, 0.12
Surficial or Alluvial Deposists
Pleistocene San Timoteo Deposits
2, 0.02 Tertiary San Timoteo and other
Tertiary Sedimentary Deposits
5, 0.05 12, 0.12 Crystalline Basement Complex
Beaumont Basin Adjudicated Area
Inactive Model Zone
U V Freeway/Highway
60
2, 0.02
5, 0.05
§ ¨ ¦
10
Ü
0 0.5 1 2
Miles

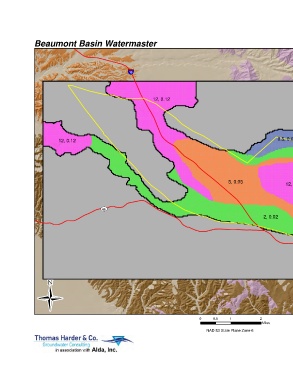

NAD 83 State Plane Zone 6 Hydraulic Conductivity
Zones - Layer 2
Figure 31
